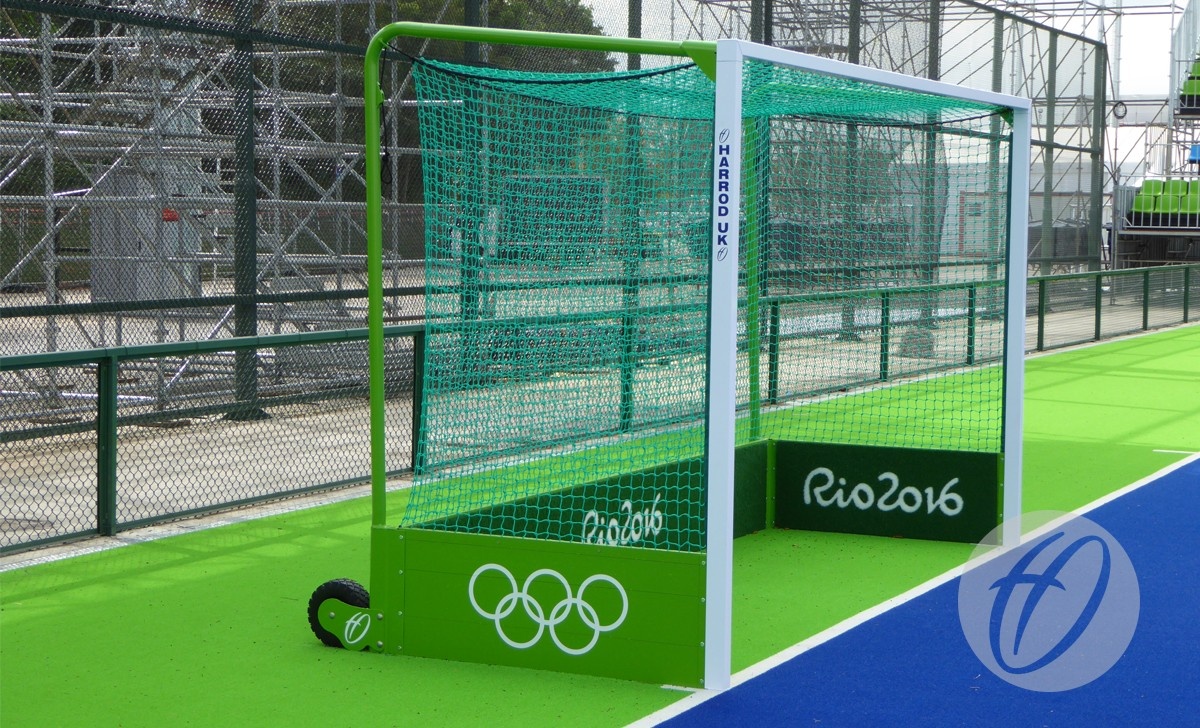

Rio 2016 Integral Weighted Hockey Goal
HOC-170

Product Images

Description

Harrod UK were the first company in the UK to design and manufacture a unique range of self weighted goals for Hockey. The market leading concept has now been widely adopted as the industry preferred method for all aluminium freestanding goals. Completely safe to use at all times, eliminating the users responsibility of attached seperate anchors.

Features and Specifications

Features:

The UK's best selling weighted hockey goal and as seen at RIO 2016 Olympic Games.

The vibrant Rio green is a stock colour from September 2016.

Uprights and crossbars have a 7mm thick reinforced front wall to prevent hockey ball damage.
Specially designed 50.8mm diameter back tubes allow the net to hang freely to meet FIH specifications and eliminate ball rebound.
Integral net retaining system holds the net firmly in place without the use of net clips.
The front of the goal to the rear of the wheel measures 1690mm.

Internal backboards can have laser cut logo at an additional cost. Also the option to have screen printing on the sideboard and backboard.

Please note that the goals do not come with Olympic branding.

Specification:

Size: 3.66m x 2.14m

  • Uprights & Crossbars made from 75mm x 50mm reinforced aluminium.
  • Fully welded corner joints provide superior strength and added safety.
  • Backbar consist of a single weighted tube with 2 puncture proof cellular rubber wheels allowing for ease of manoeuvrability.
  • 460mm high reinforced aluminium backboard panels with extra thick impact absorbent noise reducing carpet on all inside faces.
  • Polyester powder coated white excluding net supports and backboards which are Rio green.

Please see the 'SIZE OPTIONS' tab for all available size options and related products, as well as a list of extras and spares.

Size Options

Rio 2016 Integral Weighted Hockey Goal

Code
HOC-170
Title
Rio 2016 Integral Weighted Hockey Goal
Rio 2016 Integral Weighted Hockey Goal
Unit
Set
Weight
397.00kg

Size 3.66m x 2.14m

View

Recommended Net

Code
HOC-158
Title
London 2012 Hockey Net - Green
London 2012 Hockey Net - Green
Unit
Pair
Weight
9.00kg

3mm Weighted Braided Net

View

Options, Extras & Spares

Code
HOC-048
Title
Hockey Backboard Protection System
Hockey Backboard Protection System
Unit
Set
Weight
16.90kg

Backboard protection pad

View

Rio 2016 Integral Weighted Hockey Goal

Code Title Unit Weight
HOC-170 Rio 2016 Integral Weighted Hockey Goal

Size 3.66m x 2.14m

Set 397.00kg

Recommended Net

Code Title Unit Weight
HOC-158 London 2012 Hockey Net - Green

3mm Weighted Braided Net

Pair 9.00kg

Options, Extras & Spares

Code Title Unit Weight
HOC-048 Hockey Backboard Protection System

Backboard protection pad

Set 16.90kg

What is Included

What is Included

2 Crossbars

4 Sideframes (2 Left, 2 Right)

2 Backboards

2 Back Tubes

4 Wheels

2 Axle Bars

10 Net Retainer Bars

All Bolts & Fixings
